| Product Picture |
P/N | Size (mm) |
Rated Impedance (Ω) |
Rated Input Power (W) |
Sound Press Level (dB) |
Resonance Frequency (f0) |

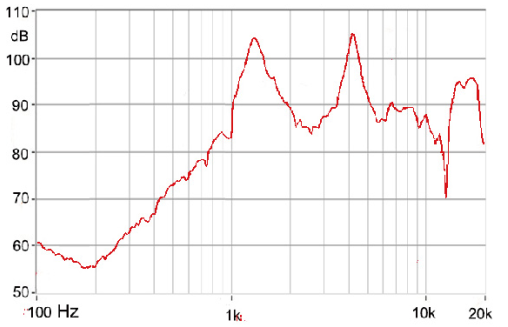

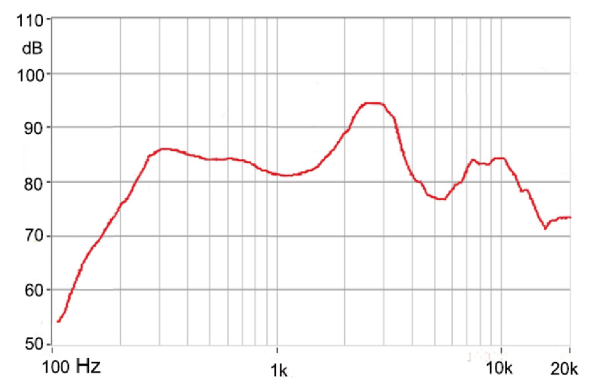

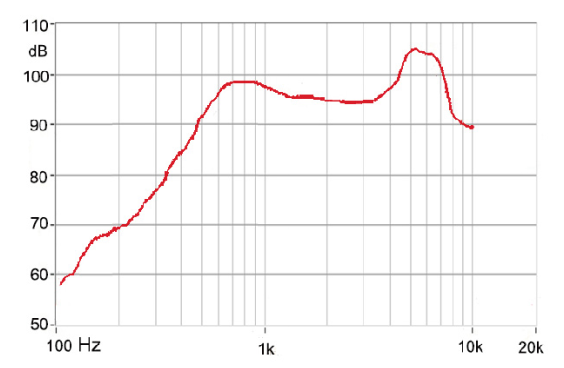

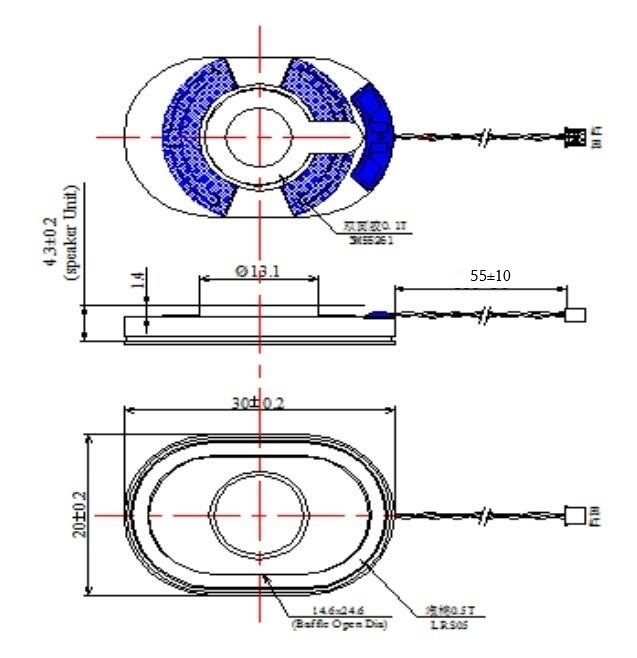

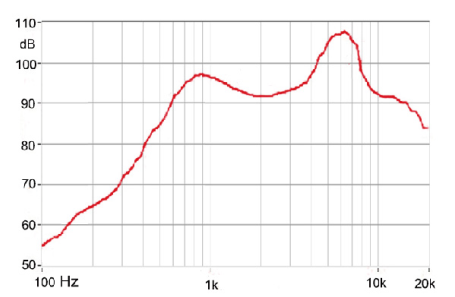

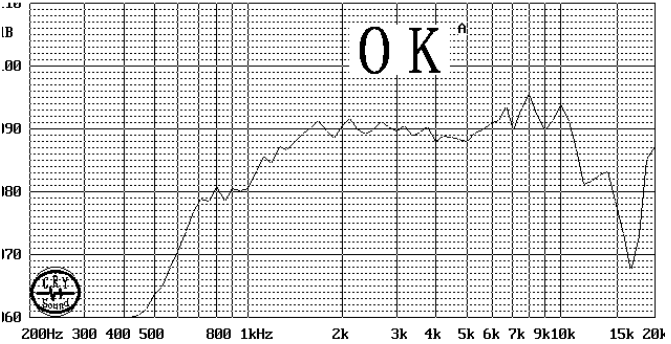

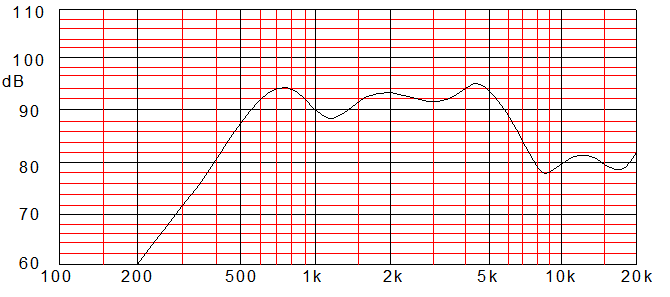

Frequency Response | Frequency Curve | Dimensions |
|

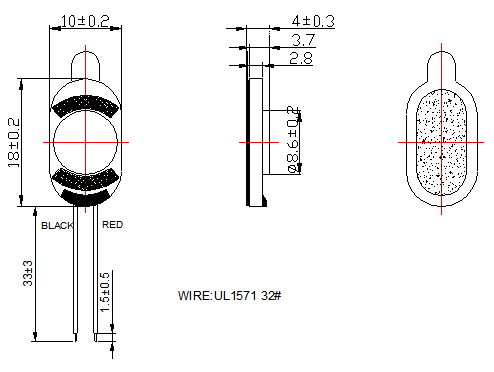

P/N：BS-1810040L33-8R-0.5W | Size (mm)：18*10*4.0 | Rated Impedance (Ω)：8Ω ± 15% | Rated Input Power(W)：0.5W | Sound Pressure Level：≥81±3dB | Resonance Frequency (f0)：13000±20%Hz | FREQUENCY RESPONSE：F0~10kHz. |
|
|
|

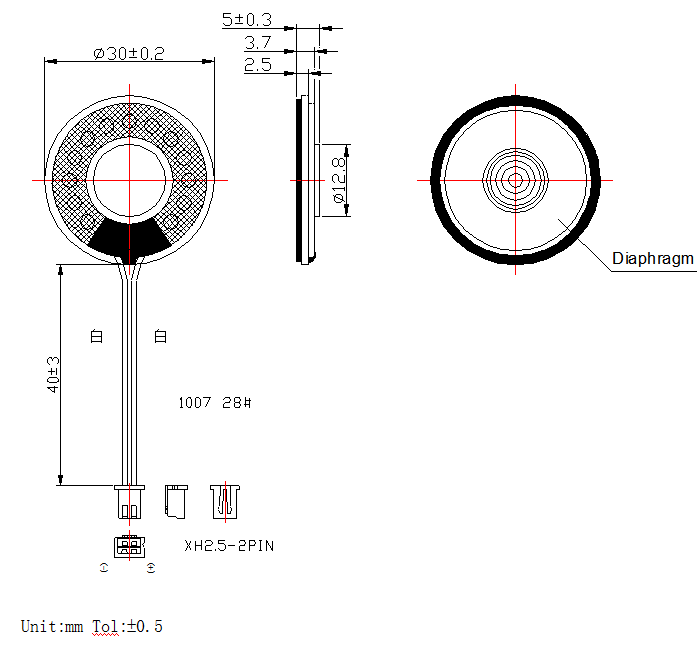

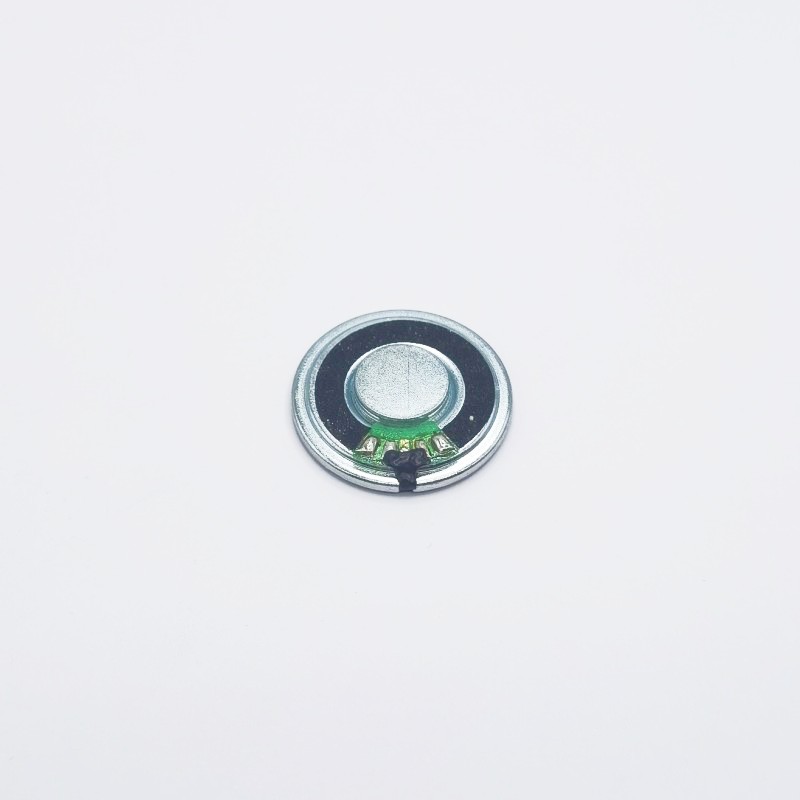

P/N：BS-30050L40-8R-1W | Size (mm)：30*5 | Rated Impedance (Ω)：8Ω ± 15% | Rated Input Power(W)：1.0W | Sound Pressure Level：≥89±3dB | Resonance Frequency (f0)：750±20%Hz | FREQUENCY RESPONSE：F0~6kHz. |
|
|
|

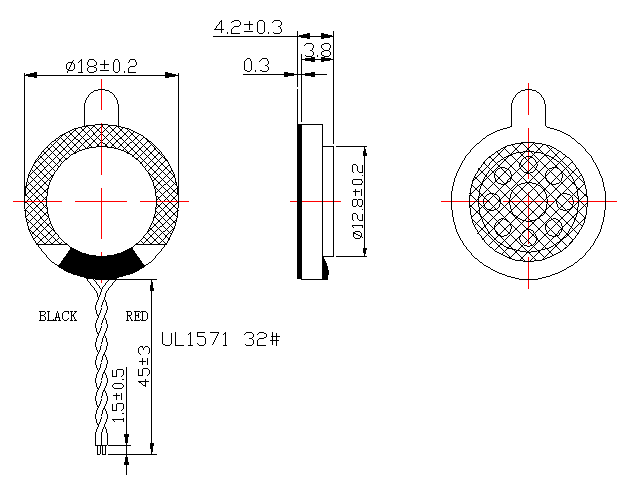

P/N：BS-18042L45-8R-0.8W | Size (mm)：18*4.2 | Rated Impedance (Ω)：8Ω ± 15% | Rated Input Power(W)：0.8 W | Sound Pressure Level：≥91±3dB | Resonance Frequency (f0)：900±20%Hz | FREQUENCY RESPONSE：F0~20kHz. |
|
|
|

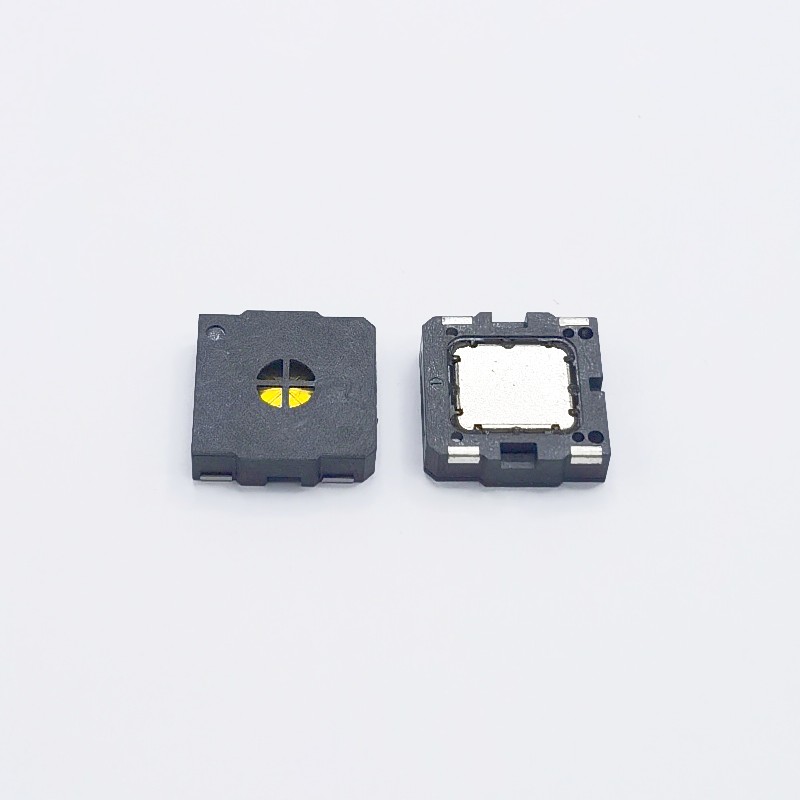

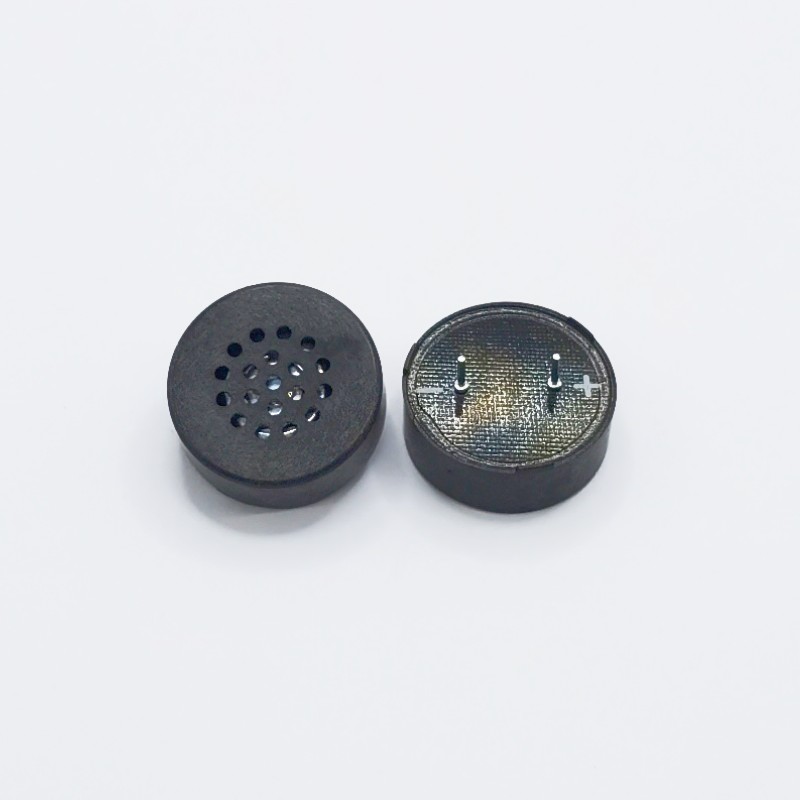

P/N：BS-151540-8R-0.8W | Size (mm)：15*15*4 | Rated Impedance (Ω)：8Ω ± 20% | Rated Input Power(W)：0.8W | Sound Pressure Level：≥92±3dB | Resonance Frequency (f0)：800±15 %Hz | FREQUENCY RESPONSE：200-2KHz |
|
|
|

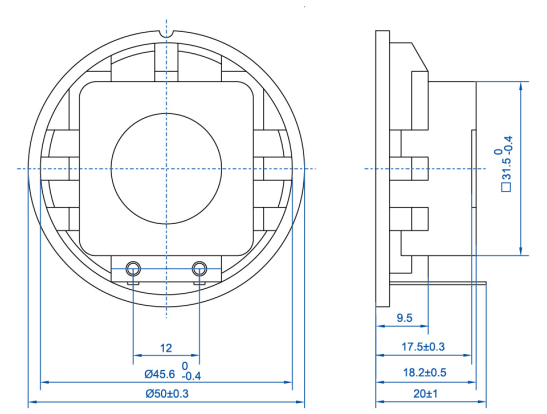

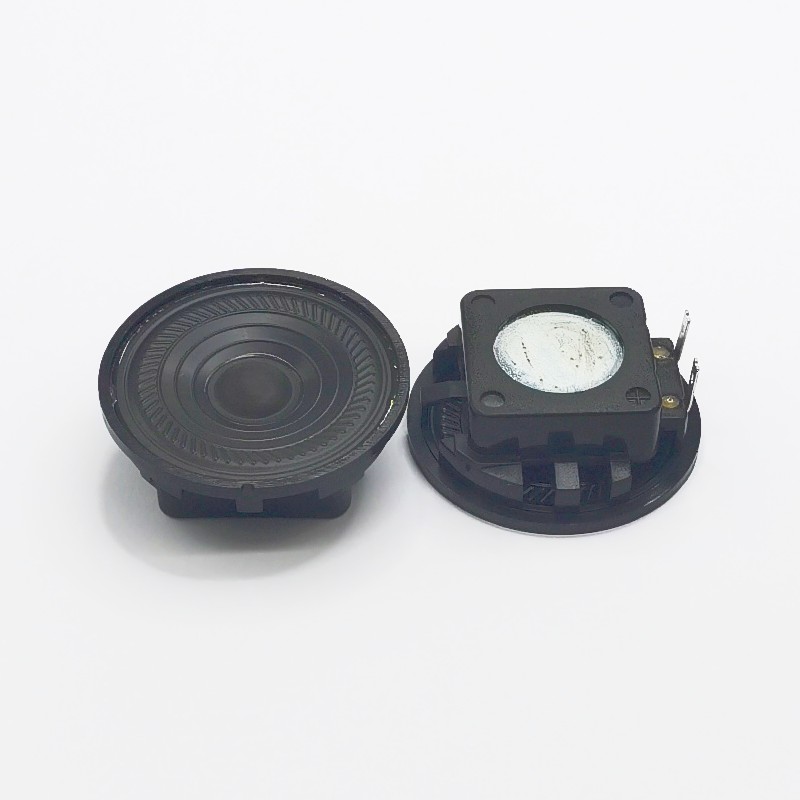

P/N：BS-5018-8R-0.5W | Size (mm)：50*18.2 | Rated Impedance (Ω)：8Ω ± 15% | Rated Input Power(W)：0.5W | Sound Pressure Level：≥86±3dB | Resonance Frequency (f0)：320±20 %Hz | FREQUENCY RESPONSE：F0 ～ 5KHz |
|
|
|

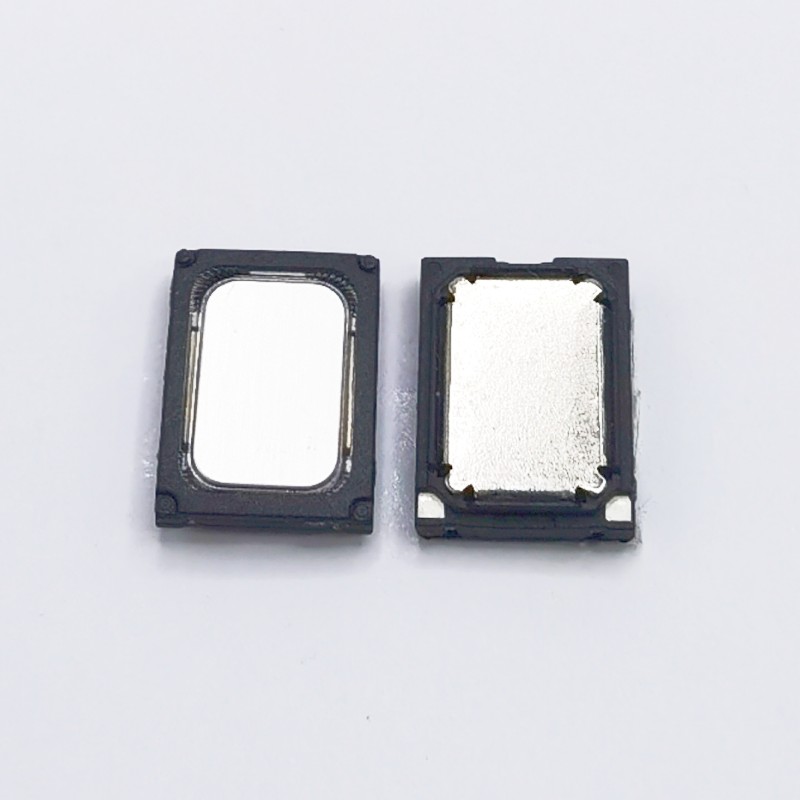

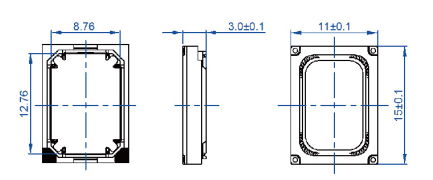

P/N：BS-151130-8R-1W | Size (mm)：15*11*3 | Rated Impedance (Ω)：8Ω ± 15% | Rated Input Power(W)：1.0W | Sound Pressure Level：≥95±3dB | Resonance Frequency (f0)：930±15 %Hz | FREQUENCY RESPONSE：200-2KHz |
|
|
|
P/N：BS-3215-8R-0.15W | Size (mm)：32*14.5 | Rated Impedance (Ω)：Array | Rated Input Power(W)：0.15W | Sound Pressure Level：≥83dB±3dB | Resonance Frequency (f0)：1200±20 %Hz | FREQUENCY RESPONSE：700-4KHz |
|
|
